BULK MATERIAL HANDLING EQUIPMENT AND SYSTEMS

DUST COLLECTOR ROTARY VALVES

Have an application for a Rotary Valve?  Click HERE
to complete our Data Sheet (Microsoft Excel Required)

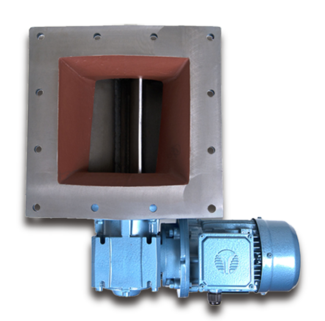

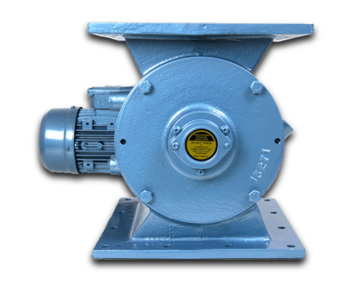

Dust Collector Rotary Valve



The Sunco Dust Collector Valve is a low-cost solution designed for light duty dust collector applications. This valve offers a tremendous cost savings over our heavy duty series.


To keep costs low, the Dust Collector Valve is only available in the configurations listed below.   It is also designed for maximum temperatures of 150° F and pressure differentials of 4 psi or less.


Construction & Specifications

Sizes:

6", 8", 10" and 12"

Body:

Cast Iron

End Covers:

Cast Iron

Rotor:

Fabricated Mild Steel with Closed-Ends and Fixed Tips

Bearings:

Sealed for Life, Mounted Outboard
Shaft Seal:

Nitrile Lip Gland
Drive:

Direct Drive, 230/460V/3Ph/60Hz, TEFC

1/2 HP @ 29 RPM (6" and 8")

3/4 HP @ 26 RPM (10" and 12")
Flanges:

Round or Square
Max. Temp:

150 deg.° F.
Max. Pressure:

4 PSI Differential


Dust Collector Valves are typically stock and can ship within 24 hours.


If your max temp is greater than 150F and/or max pressure differential is greater than 4 PSI, please see our Standard Rotary Valve Series




Dust Collector Rotary Valve
